Read at your pace, with less waiting
Normal English text reveals up to 12 glyphs per update. Choices, authored pauses and deliberately slow text keep their intended behavior.
01 / THE VISION
The Hyrule you remember.
A clearer view.
Ocarina of Time at native 640×480, with crisp lettering and carefully chosen curated conveniences. Even Don likes it.
The goal is simple: make the game easier to see and use, keep its familiar artwork and pacing, and reduce avoidable rendering work.
See what changesUS 1.04:3 · 480i8 MB RDRAM
Clarity with character
Orange Kid for dialogue and plain UI. Original styling for iconic artwork and action labels.
Classic pacing
The native NTSC target stays at 20 FPS. This is a resolution and clarity build.
Built for your core
Targeted at the MiSTer N64 94MHz+ core, with separate automated emulator validation.
02 / SELECTED ZELDA REDUX ADDITIONS
Less menu time.
Same adventure.
This build integrates selected Redux quality-of-life additions. Here is what you will actually notice while playing.
D-pad quick access
| ↑ Up | Use the Lens of Truth |
|---|---|
| ↓ Down | Use your ocarina |
| ← Left | Toggle Iron Boots |
| → Right | Toggle Hover Boots |
You must own the item. Boots are for adult Link; pressing the same boot shortcut again returns to Kokiri Boots. Normal gameplay restrictions still apply.
Quicker block pushing and pulling
The push takes fewer frames while retaining the correct grid movement and final position.
A focused selection
This is not the full Redux feature set. Intro skipping, the font work and the warmer rupee sound are additional changes in Orange Kid, described later in this guide.
Redux attribution
Ocarina of Time Redux was started by Maroc, with continuation and documentation by ShadowOne333. Orange Kid integrates selected quality-of-life additions from this work.
Maroc’s original Redux project →
ShadowOne333’s Zelda64 Redux documentation →
03 / A CLEARER CONVERSATION
The same words.
Sharper letterforms.

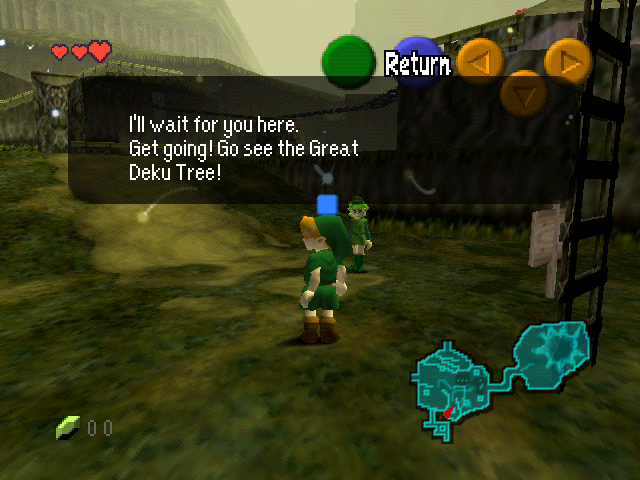

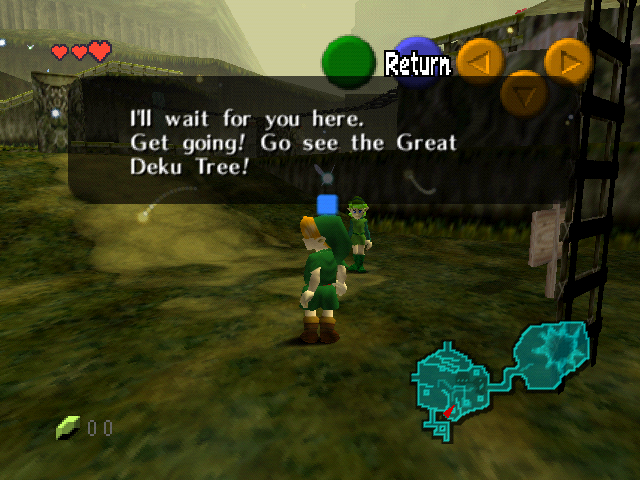

Actual game renders of Saria's Kokiri Forest dialogue. Start with the enlarged dialogue detail, then switch to the full native frame.
Nearest-neighbor display · no added smoothing
Stock OoT dialogueOrange Kid
Drag the divider, or choose a view.
Both images are native 640×480 emulator framebuffer captures. The comparison build restores the original dialogue glyphs, filtering, shadow and spacing within the same high-resolution build. It is not a stock 320×240 screenshot. The same Saria message is opened for capture; no letters are drawn onto either image afterward. The detail is an unedited crop, enlarged without smoothing.
Open original-text native frame · Open Orange Kid native frame · MiSTer viewing profile
Native shapes, clean edges
The font keeps its own proportions. Letter spacing is checked, lowercase i is one column wide, and the new glyphs use point sampling rather than softened edges.
Icons align with the new text
Inline controller symbols move slightly down to sit alongside the dialogue. Text content and control codes retain their meaning.
04 / HUD & MENUS
Small labels.
A big clarity difference.

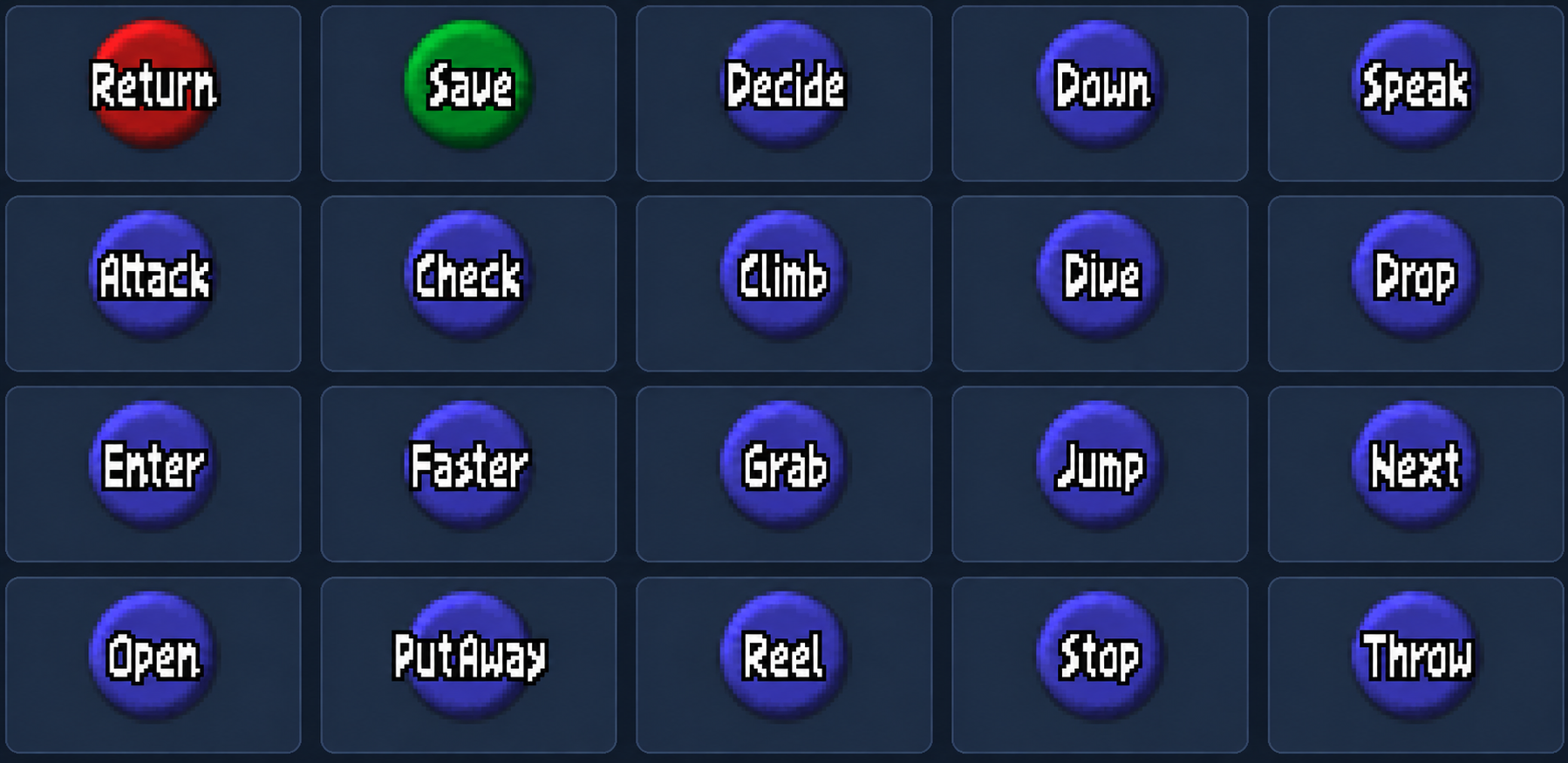

Action buttons follow the crisp Return and Decide look. File menus and name entry use Orange Kid.
The Save fix
Save has a separate label-rendering path. Its point-sampling fix removes the remaining softness while keeping the button’s position and shape.
Keep the familiar action style
HUD commands use the original white OoT letter shapes with a solid black outline, matching Return and Decide. Orange Kid is used for plain text elsewhere.

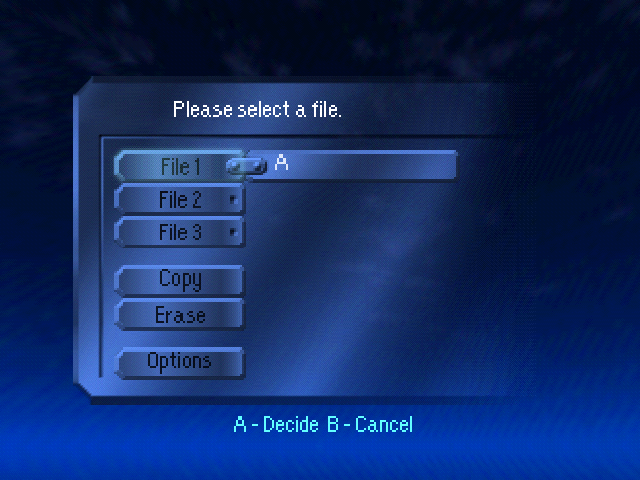

A cleaner file menu
File 1–3, Copy, Erase, Options, Yes, Quit and END use cleaned Orange Kid glyphs. Borders and button geometry are retained.

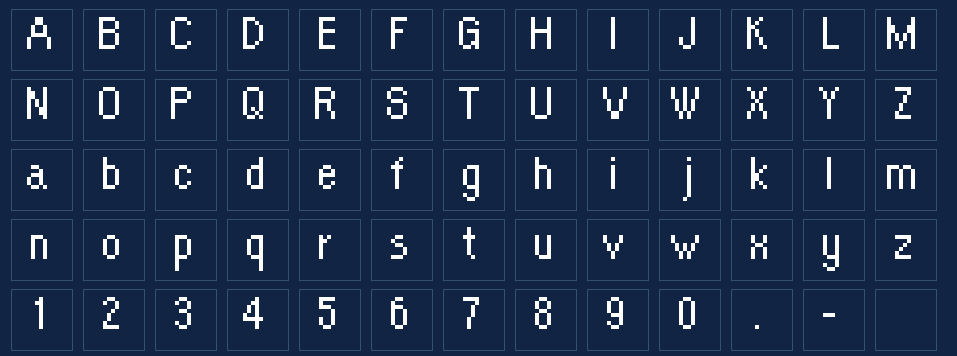

Approved name-entry glyph asset preview.
05 / ORIGINAL HYRULE
Preserve the artwork
that makes it Zelda.
Sharper plain text sits alongside the original title logo, area-entry cards and printed map location names.

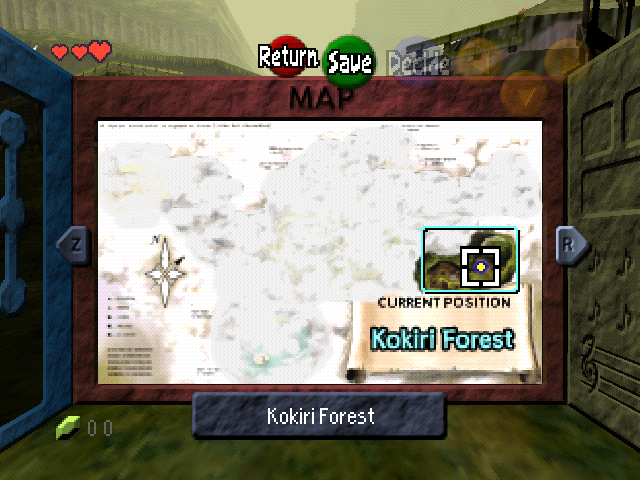

Original location names
All 57 English area-entry cards retain the original artwork. Printed map position names and previously changed dungeon headings are restored too.
Clarity where it belongs
Bottom map labels, navigation prompts and item names remain Orange Kid.

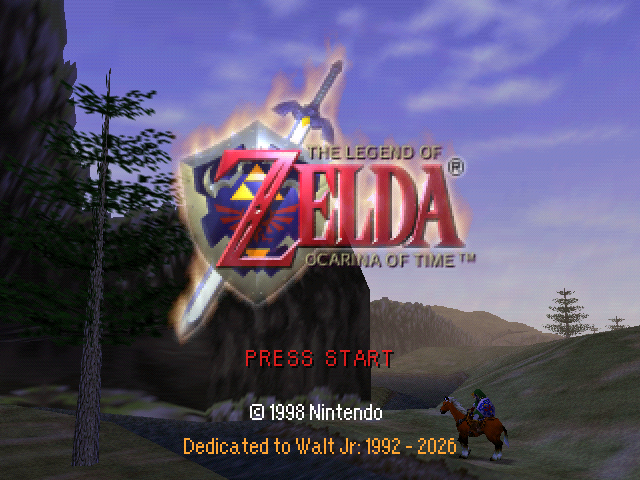

THE TITLE SCREENThe original Zelda logo.
The original Zelda logo.
A personal dedication.
PRESS START is centered. The copyright uses Orange Kid, followed by orange text beneath it:
Dedicated to Walt Jr:
1992 - 2026
06 / PLAY & SOUND
Back to Kokiri Forest,
without the wait.
Opening intro skip

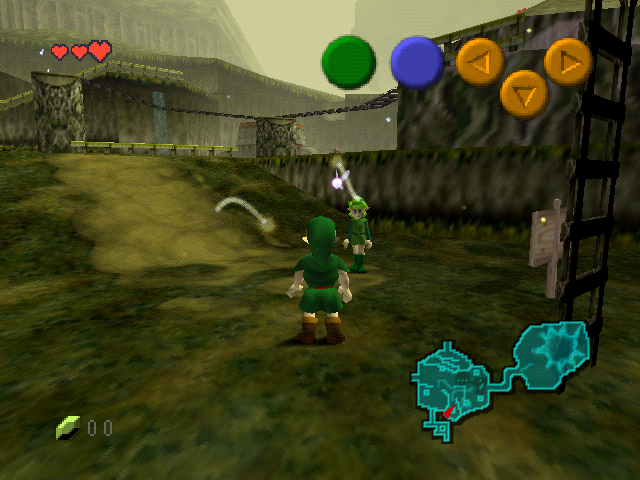

New files skip the dream, Navi’s arrival and Saria’s greeting. Child Link starts outside his house at 10:00 with three hearts and the normal empty inventory.
Existing files are retained. Forest saves resume outside the house; adult and dungeon spawning keep their previous behavior.
AUDIO CLEANUP
A softer rupee pickup
Lower volume, softer treble, a little lower-octave body and short reverb. Only the pickup sound is replaced; music, other effects and rupee-counting ticks keep their original audio.
Actual-ROM captures on their original level scale. Faint scene ambience remains.
07 / TARGETING MISTER
Made for the
MiSTer N64 94MHz+ core.
The larger native image is designed around this core, which was also used for your hardware testing.
Why target this core?
A 640×480 frame contains four times as many pixels as the original 320×240 image. The build keeps native graphics and the original 20 FPS NTSC target, while reducing repeated CPU work to help with the larger workload.
The higher core clock does not change the game's frame-rate target.
The setup
| Core | MiSTer N64 94MHz+ |
|---|---|
| Memory | 8 MB RDRAM |
| Native image | 640×480 NTSC 480i |
| Shape | 4:3 |
| Game target | 20 FPS |
Reference MiSTer video profile
The following settings come from your supplied MiSTer menu photo. Use this profile when viewing the build on MiSTer.
| Video Out | Original (VI) |
|---|---|
| VI Colorbits | 24 |
| VI Bilinear | Off |
| VI Deblur | On |
| VI Gamma | Off |
| VI Dedither / Antialias | Original |
|---|---|
| VI Divot / Noisedither | Original |
| Texture Filter | Original |
| Dithering / LOD Textures | Original |
| Error Overlay | Off |
How to read the screenshots
Website gameplay images are native emulator framebuffer captures saved as RGB PNGs. No shader, added blur or image enhancement is applied. They show the ROM's rendered pixels; they do not reproduce the MiSTer VI deblur circuit exactly.
Hardware testing and emulator checks
The user-confirmed earlier baseline was tested on the MiSTer N64 94MHz+ core. The final rendering fixes also passed automated CPU/RSP/RDP emulator scenarios and targeted code tests. A full hardware playthrough and measured MiSTer FPS comparison have not been established.
08 / PERFORMANCE & RENDERING
A sharper image.
Careful frame preparation.
The build targets the MiSTer N64 94MHz+ core. It reduces repeated CPU work while keeping the classic 20 FPS NTSC target.
1,606 → 3Commands generated per pause redraw
20 FPSThe original NTSC game target
18Regression test suites passed
Reuse the work
Pause restoration reuses a prepared display list. Grayscale geometry and its palette are reused too, reducing repeated construction and temporary graphics allocations.
Correctness at this resolution
Fog settings are restored after pre-rendered backgrounds. Graphics task submission checks all four arenas. Framebuffer selection and depth/glow boundaries were checked for the larger image.

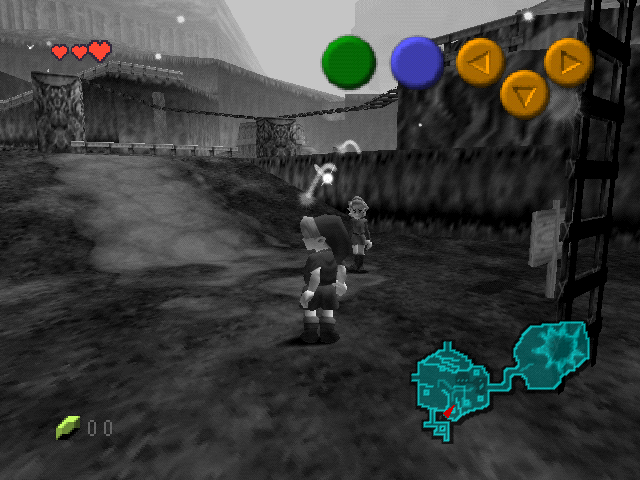

The grayscale striping fix
The effect now loads framebuffer rows using a legal 640-pixel source width. The grayscale image is clean; the HUD remains in color because it is drawn afterward.
What was tested?
Both ROM variants passed build, checksum, DMA and BPS checks. Eighteen regression suites passed. An isolated software-RDP test matched 2,457,600 grayscale pixels exactly across four source patterns with single- and multi-worker rendering.
The earlier user-confirmed baseline ran on the MiSTer N64 94MHz+ core. The final fixes also passed automated emulator scenarios. A full hardware playthrough and quantified MiSTer FPS comparison have not been established.
Download the test pipeline guide →09 / CHOOSE YOUR VERSION
Original framing,
or the full viewport.
Both versions include the same clarity, quality-of-life, audio and rendering changes.

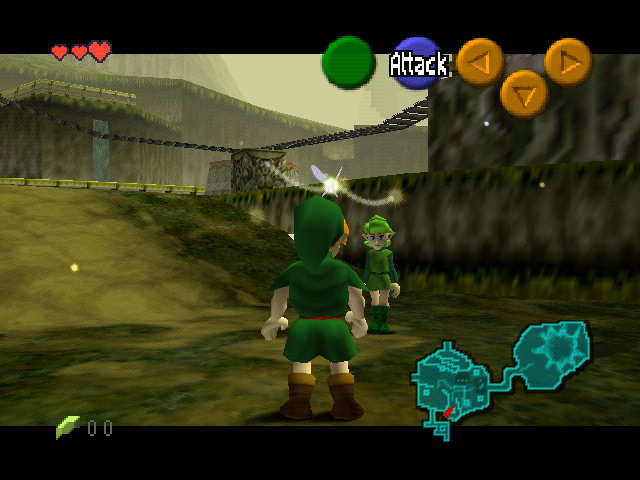

NORMAL
Original cinematic framing
Retains the original visible cinematic and Z-targeting bars.
Download normal BPS ↓Zelda_64_Orange_Kid_v1.bps

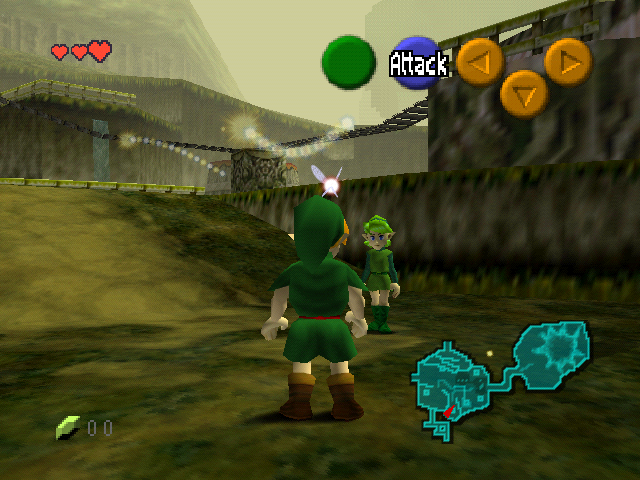

FULLSCREEN
More of the existing scene
Removes visible cinematic and Z-targeting bars. Cameras, projection and cutscene timing are retained. More visible scene area can increase graphics work.
Download fullscreen BPS ↓Zelda_64_Orange_Kid_v1_Fullscreen.bps
Fullscreen + HUD-Free test BPS ↓
Optional v0.7: fullscreen framing with the gameplay HUD hidden. Build and targeted regressions passed; emulator, complete playthrough and MiSTer validation for this combined variant remain pending.
Apply the patch
- Choose normal or fullscreen.
- Apply its BPS to a clean, big-endian Ocarina of Time US 1.0 ROM.
- Load the resulting ROM using the MiSTer N64 94MHz+ core with 8 MB RDRAM.
Check your base ROM
Clean US 1.0 MD5
5bd1fe107bf8106b2ab6650abecd54d6Native 640×480 NTSC 480i, 4:3. Keep a save backup and start fresh rather than loading an emulator savestate with older code and assets.
10 / ABOUT ORANGE KID
A familiar adventure.
A clearer presentation.
Zelda 64: Orange Kid is an unofficial Ocarina of Time US 1.0 clarity project for the MiSTer N64 94MHz+ core. It pairs native 640×480 rendering with crisp Orange Kid lettering and selected quality-of-life improvements.
What stays familiar
The original Zelda artwork, 4:3 composition and NTSC 20 FPS target remain central. Selected Redux conveniences add faster ordinary dialogue, D-pad item shortcuts and quicker block pushing without replacing the whole game with the complete Redux feature set.
The native output is 640×480 NTSC 480i and requires 8 MB RDRAM.
Choose your presentation
Normal retains the cinematic and Z-targeting bars. Fullscreen hides those visible bars while keeping the original cameras and cutscene timing. Either framing can be paired with the optional HUD-Free test build.
HUD-Free hides the gameplay overlay while preserving timer and quest processing, targeting, pause controls and interface fades. Timed-event digits and action prompts are invisible.
Compare and download the builds →People and projects behind it
Created and curated by Brett Kempf / pxpxpxp.
MiSTer N64
Corn provides the unofficial 94MHz+ turbo builds targeted by this project. Robert Peip (FPGAzumSpass) created the original MiSTer Nintendo 64 core. Thank you to both developers and the MiSTer contributors and testers.
Redux and source foundations
Ocarina of Time Redux was started by Maroc, with continuation and documentation by ShadowOne333. Orange Kid uses selected conveniences from that work and builds on the ZeldaRET Ocarina of Time decompilation.
Testing and project status
Build integrity checks and targeted regressions cover rendering, timer/quest behavior, saves and UI paths. Automated tests and emulator smoke checks are not a complete playthrough. Full beginning-to-ending and final MiSTer hardware validation remain pending; the optional downloads describe their specific test coverage.
Project repository · Report a reproducible issue · HUD-Free test details
This is an unofficial fan project and is not affiliated with or endorsed by Nintendo. Original game artwork and third-party fonts belong to their respective rights holders. Downloads are BPS patches; supply your own clean US 1.0 ROM.
